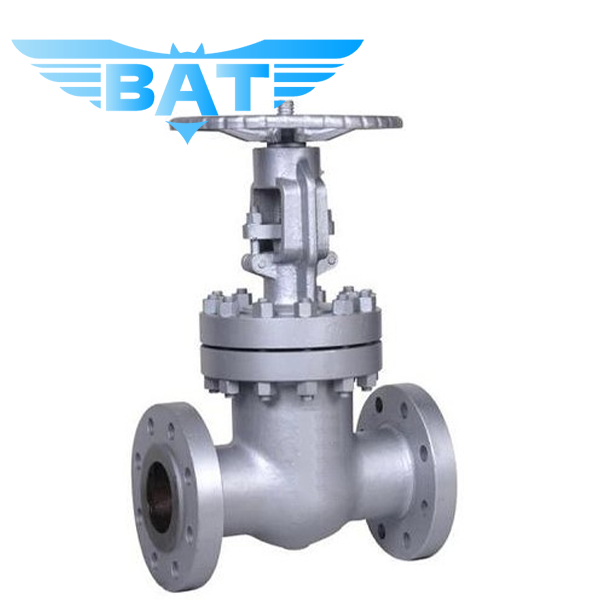

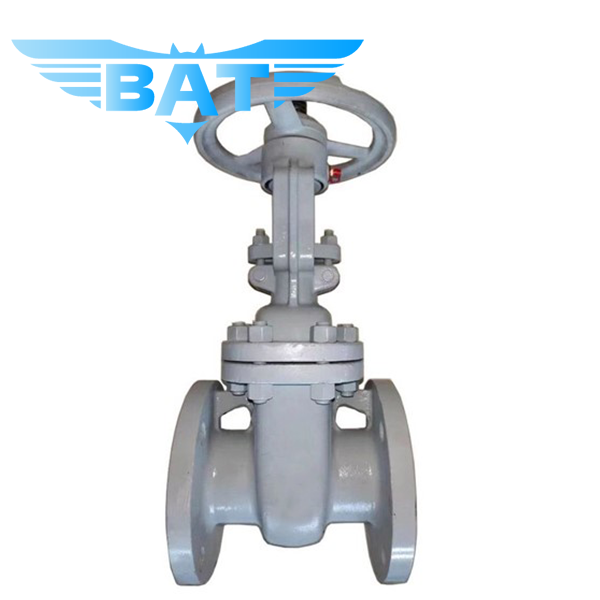

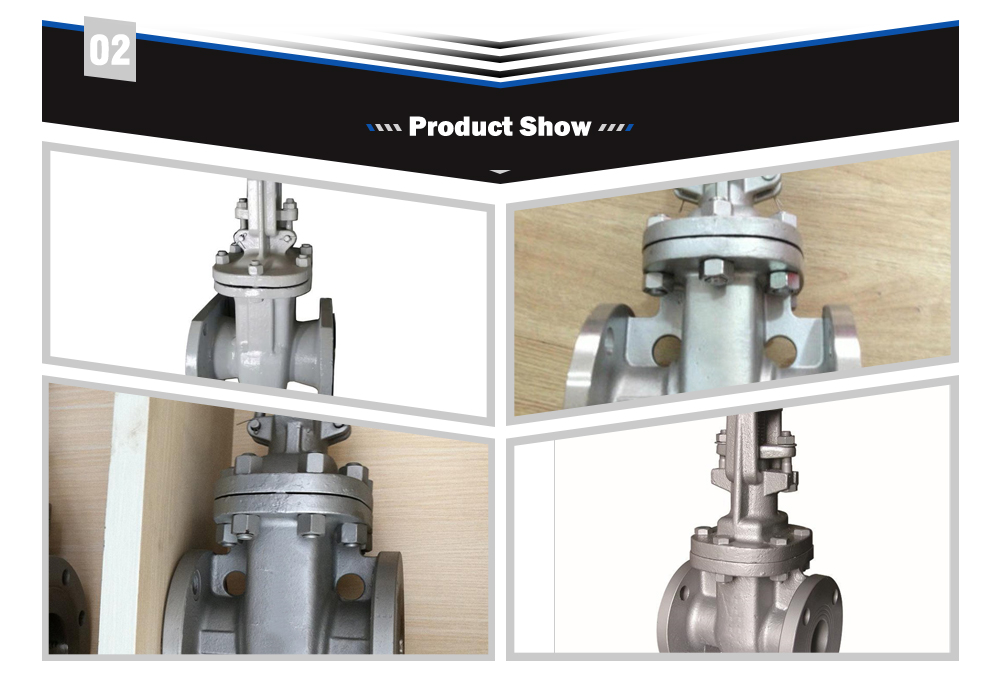

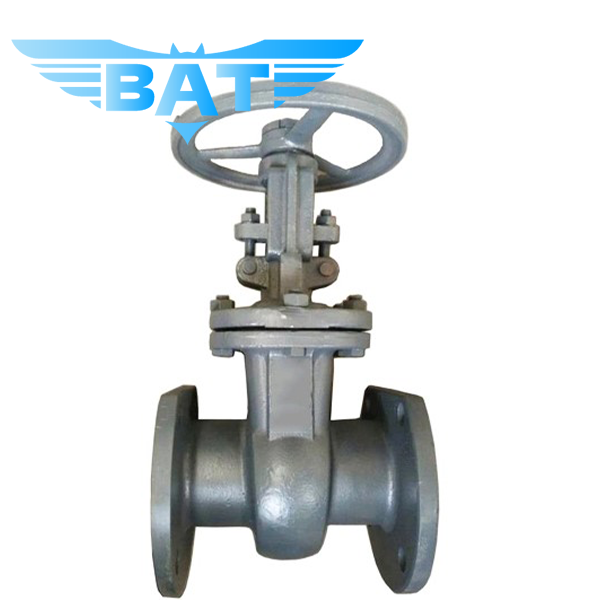

Product Name Cast Steel Flanged Gate Valve Size Range Customized according to customer needs Seal Construction Metal seal, soft seal, etc. Main Material Cast Steel Pressure Level ANSI 150, ANSI 300, ANSI 600, etc. Mode of operation Manual operation/equipped with electric/pneumatic execution Valve Body Type Flange Connection Design Standard ANSI, API, DIN, etc. Package Wooden Crates: Cast steel gate valves are often packed in sturdy wooden crates to provide protection during transportation. These crates are designed to withstand handling and prevent any damage to the valve. Can also be packaged according to customer requirements Drawing Format DWG, DXF, STEP, IGS, STL, SKP, AI,PDF, JPG, etc.

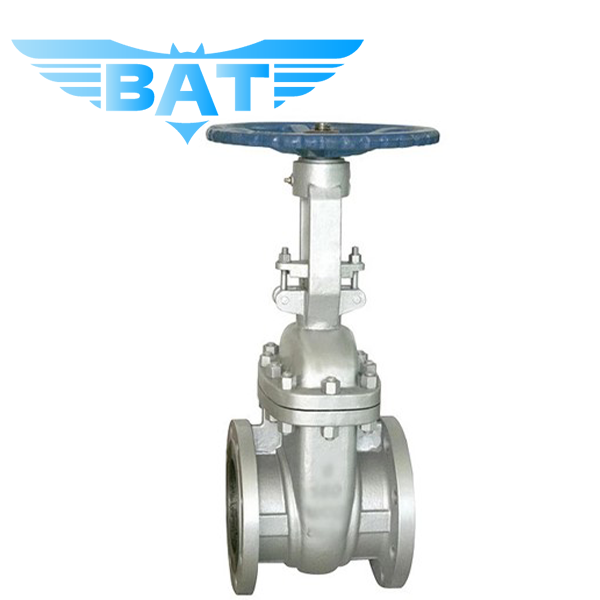

Some cast steel flanged gate valves offer a non-rising stem option, where the stem does not move vertically during operation. This design is particularly useful in installations with space constraints. Characteristics ： The gate valve incorporates a rising stem design, where the stem moves up and down as the valve is opened or closed. This design provides a visual indication of the valve's position, allowing for easy monitoring and operation. It also helps to determine whether the valve is fully open or closed.
Application ：
Gate valves are extensively used in the oil and gas sector for controlling the flow of crude oil, natural gas, and refined products. Flanged gate valves play a crucial role in pipelines, refineries, and processing plants.
