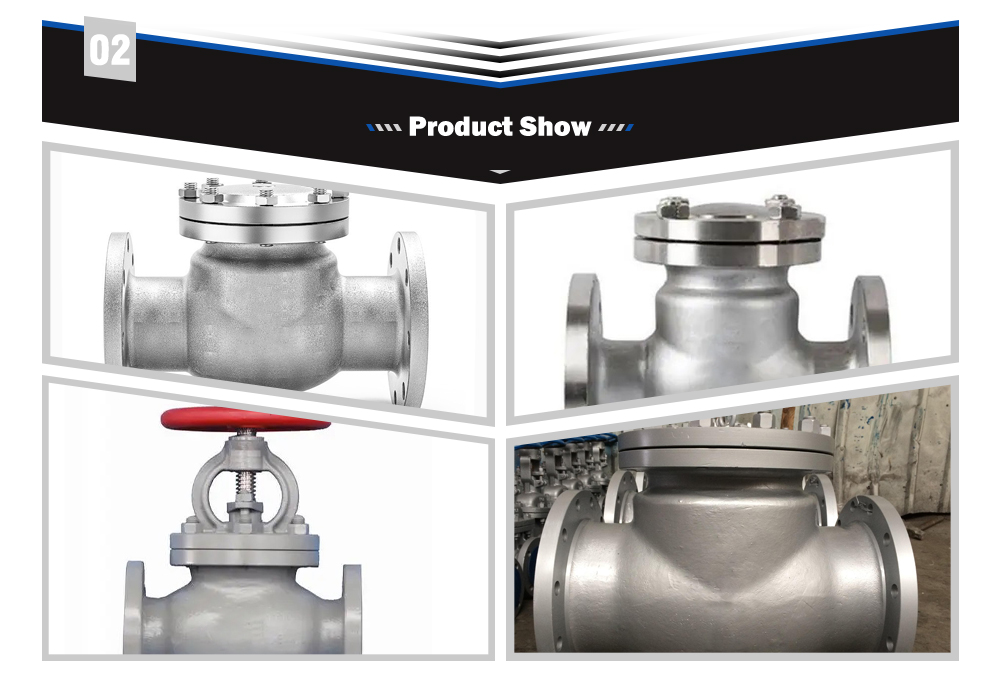

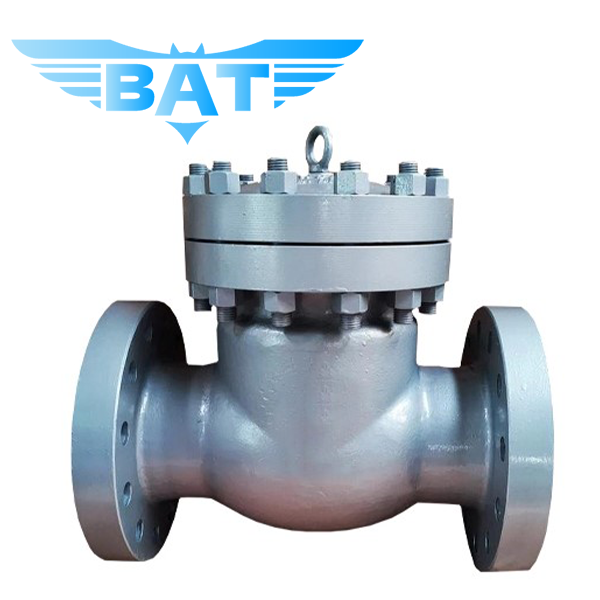

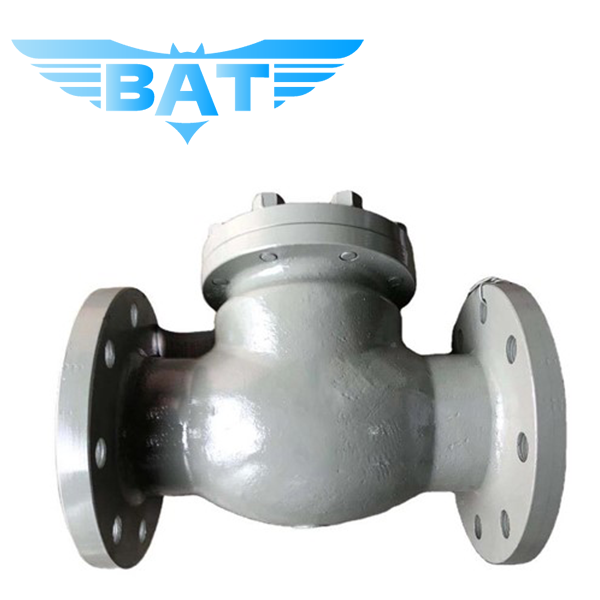

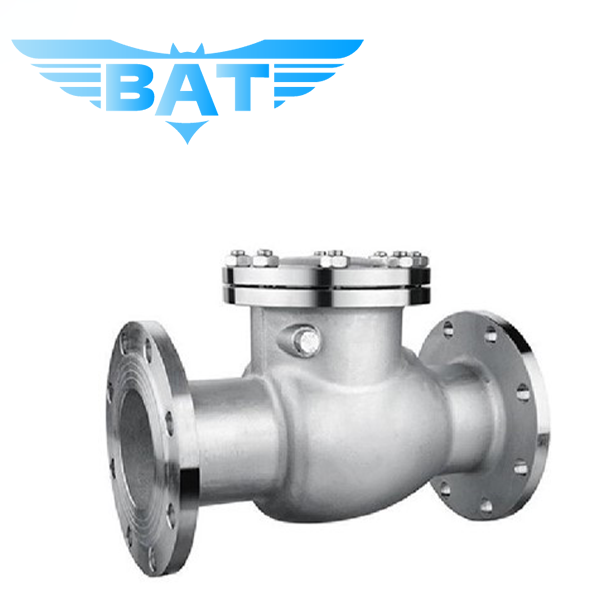

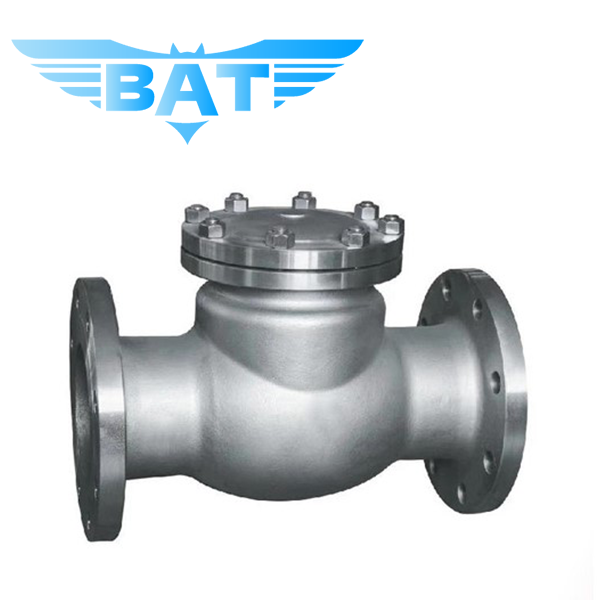

Product Name Cast Steel Flanged Swing Check Valve Valve Body Material Carbon steel, stainless steel, etc. Size range 1/2" to 48", customizable Pressure rating ANSI 150、ANSI 300、ANSI 600, etc. Fluid Medium Suitable for all kinds of liquid and gas media. Connection Mode Flange connection Valve Type Swing check valve Suitable Applications Oil and Gas, Petrochemical, Power Plants, etc. Package The packaging of a cast steel check valve typically involves appropriate materials and methods to ensure its safe transportation, handling, and storage. Can also be packaged according to customer requirements. Drawing Format DWG, DXF, STEP, IGS, STL, SKP, AI,PDF, JPG, etc.
The valve body and components are constructed from high-quality cast steel, providing excellent strength, durability, and corrosion resistance. This robust material ensures the valve's suitability for a wide range of industrial applications and enhances its performance in demanding environments. Characteristics ： The swing check valve features a swing disc or flap that freely swings on a hinge or pivot. This design allows the disc to move away from the seat during forward flow, allowing fluids to pass. When the flow direction is reversed, the disc returns to the seat to prevent backflow. The swing disc design ensures effective sealing and minimal pressure drop.
Application ：
These valves are extensively used in water treatment plants to control the flow of water during different treatment processes. Flanged swing check valves prevent backflow, ensuring the effectiveness of treatment systems.
