Product Name Cast Steel Ball Valve End Connections ASME B16.5, ASME B16.25, ASME B16.10, API 6D, API 608, etc. Valve Operation Lever, gear, actuator (pneumatic, electric, hydraulic) Industry Standards API 6D, API 608, ASME B16.34, BS 5351, ISO 17292, etc. Material Cast steel Size 1/2" to 24" Various sizes can be customized Pressure Rating 150# to 2500# End Connections Flanged, socket weld, threaded, butt-weld, etc. Package Standard export package or as required. Drawing Format DWG, DXF, STEP, IGS, STL, SKP, AI,PDF, JPG, etc.

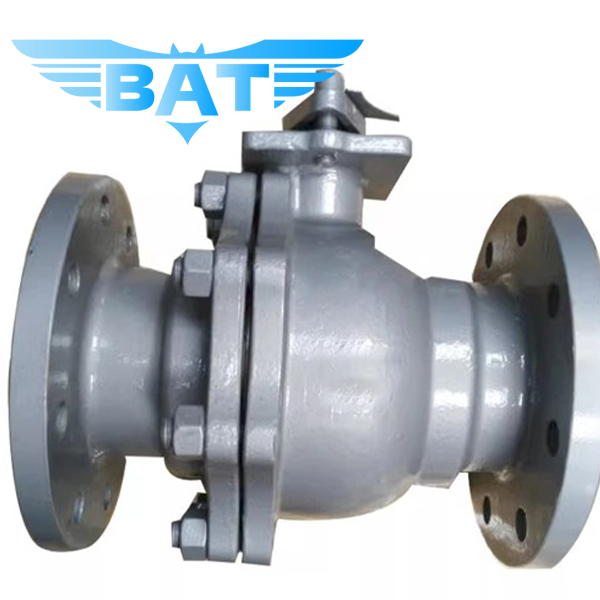

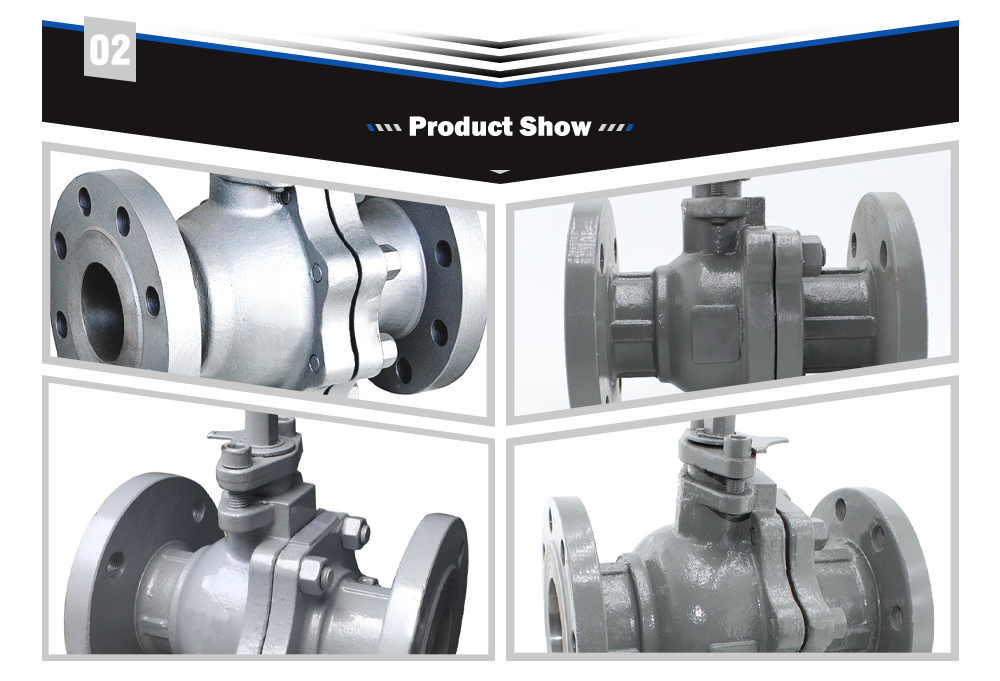

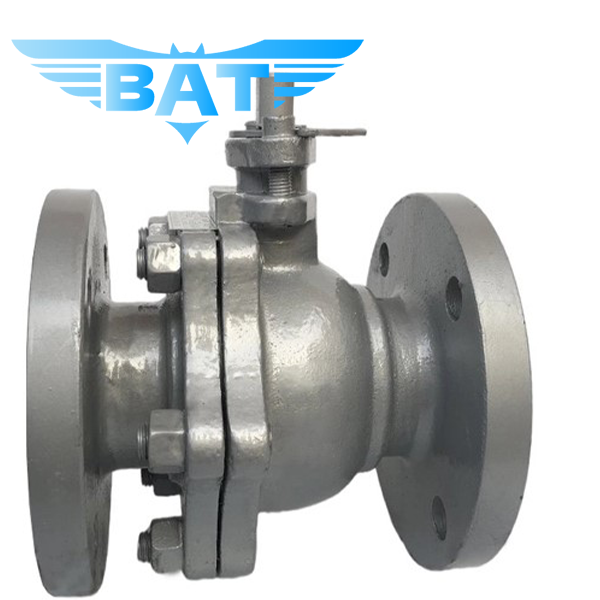

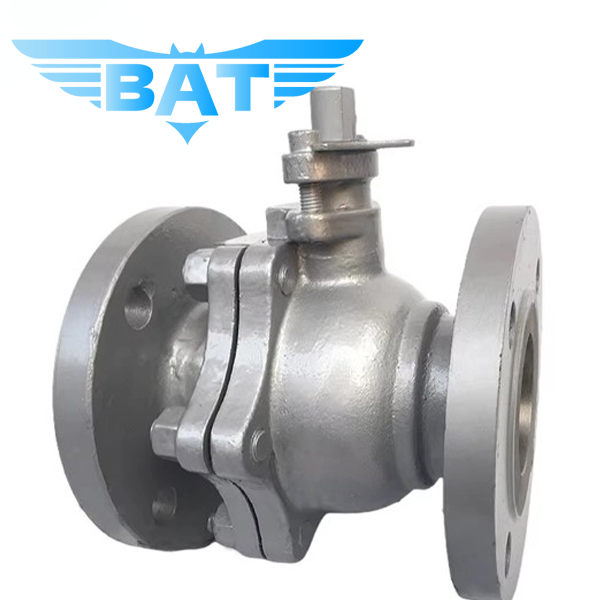

The valve features a trunnion-mounted ball design, where the ball is supported by trunnions or shafts. This design enhances stability, reduces operating torque, and ensures precise control during operation, making it suitable for larger-sized valves and high-pressure applications. Characteristics ： Cast steel trunnion ball valves are available in both full bore and reduced bore configurations. Full bore valves provide minimal flow restriction, allowing for high flow rates and reduced pressure drop, while reduced bore valves may be selected for specific applications with space or cost constraints.
Application ：
In petrochemical plants, trunnion ball valves are employed to regulate the flow of various chemicals and hydrocarbons during refining and processing operations. Their robust design makes them suitable for corrosive and demanding process conditions.
